6KW DC/DC Converter Module

ATD6K-540S27-M

Features

●Output Power：6KW
●Input Voltage：400~750VDC
●Output rated voltage：27.5VDC
●Output Currant：218A
●Dimensions：242x133x53mm
●Cooling System：Moudle
●Communication Method：CAN-BUS
●Weight: ≦2.5KG

Series Specification

Item	Part Name	Model Name	Power (W)	Input Voltage (Vdc)	Output Voltage (Vdc)	Output Current (A)	Efficiency	Size (mm)	Cooling system	Weight (Kg)	Certificate
1	6KW DC/DC CONVERTER	ATD6K-540S27-M	6000	400~750	27.5	218	≥95%	242x133x53	N/A	2.5	GB/T

Specification

Description	Technical specifications	Remark
Operating temperature	- 40~85℃	Coolant inlet temperature
Rated output power	6KW	Peak: 6.6KW ,≦6 mins
Input voltage range	400~750VDC
Output rated voltage	27.5VDC	20~30V presettable
Rated output current	218A
Auxiliary power	9~32VDC	VCC
Efficiency	≥94%	Conditionally , will provide test result by request
Output voltage ripple	≤500mVPK-PK
Output voltage accuracy	±1%
Wake-up method	CAN 、KL15 、 High Voltage DC input
Communication method	CAN-BUS
Quiescent Current	≦2mA	Consume battery current in sleep/stop state
Protection characteristics	Input OVP/UVP, output OVP/UVP,OTP, input reverse protection, output short circuit protection, OCP, OTP
EMC characteristics	GB/T 18655-2010
Dimensions	242x133x53mm
Cooling System	Liquid cooling , flow rate ≧12L/min	≦30 L/min ,suggested
Protection Level	IP67
Weight	≦2.5KG

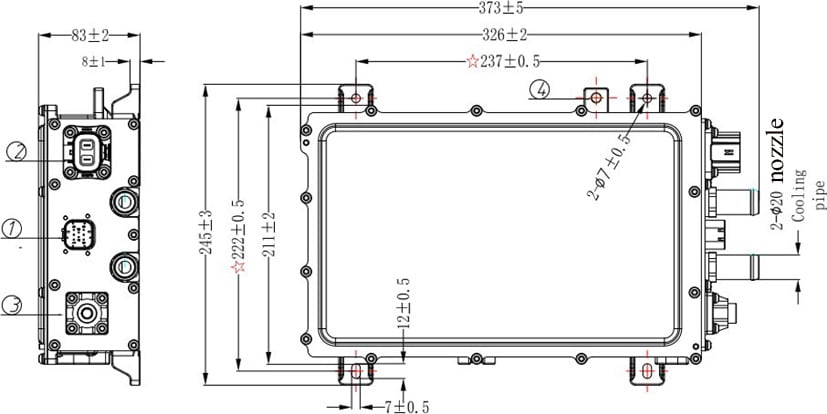

Structural parameters (unit:mm)
